工作寬度

Working width

700mm

工作高度

Working Height

850±50mm

最小工件尺寸

Min board Size

50×70mm

傳送速度

Transmission speed

變頻調速

設備功率

Machine Power

40Kw

機器尺寸

Machine Size

13500×1680×1850mm

工藝流程:

入板→除油→溢流水洗1→溢流水洗2→市水洗→微蝕→溢流水洗3→溢流水洗4→DI水洗→吸干→吹干→防氧化→吹干→溢流水洗5→溢流水洗6→DI水洗→吸干→吹干→干板組合→出板

Process:

Load→ degreasing → overflow water washing 1 → overflow water washing 2 → municipal water washing → micro erosion → overflow water washing 3 → overflow water washing 4 → DI water washing → suction drying → blow drying → anti oxidation → blow drying → overflow water washing 5 → overflow water washing 6 → DI water washing → suction drying → blow drying → dry plate combination → Unload

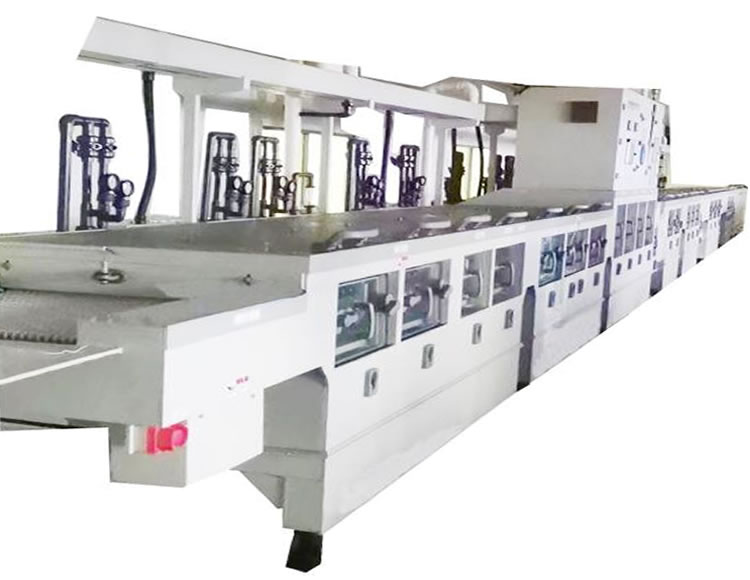

設備說明： OSP防氧化生產線設備特點:

1．先進的工藝結構設計，配合軟質傳送滾輪，避免工件表面留有劃痕。

2．采用小軸距，雙傳動系統，可使薄板、小板(50×70mm)順暢通過。

3．連續過濾系統，使溶液保持穩定。

4．先進的水循環系統，PLC控制系統，可節省能源降低生產成本。

5．集成排水、排氣系統，透明鋼化玻璃窗，使機器美觀大方。

Introduction： Features of OSP anti-oxidation production line:

1. Advanced process structure design, with soft transmission roller, to avoid scratches on the surface of the workpiece.

2. With small wheelbase and double transmission system, the thin plate and small plate (50 × 70 mm).

3. Continuous filtration system to keep the solution stable.

4. Advanced water circulation system and PLC control system can save energy and reduce production cost.

5. Integrated drainage and exhaust system, transparent toughened glass window, make the machine beautiful and generous.
